Material :
WCB / WC6 / LCB / CF8 / CF8M / CF3 / CF3M etc.
Pressure Rating :
150# / 300# / 600#
Operation :
Hand Wheel / Gear / Actuated (Pneumatic/Electric)
Trims Material :
Available on requirement like
Trim = 1, 2, 5, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18
| STANDARDS | |
|---|---|
| Design & Mfg. Std. | BS 1873 / ASME B 16.34 |
| Face to Face | ASME B16.10 |
| Flange Ends – ASME B 16.5 | |

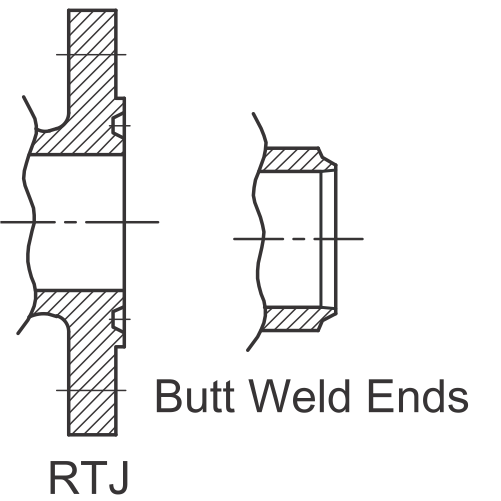

| End Connection | Butt Weld Ends – ASME B 16.25 |
| Inspection & Testing Standard | API 598 / BS EN 12266-Part-I |

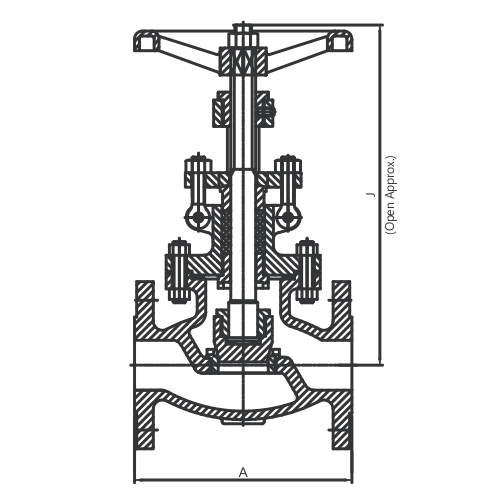

FACE TO FACE DIMENSIONS FOR GLOBE VALVES
| CLASS 150 | |||||||
|---|---|---|---|---|---|---|---|
| Size | A (MM) | J | Weight (kg) | ||||
| NPS | DN | RF | RTJ | BW | MM | FE | BW |
| ½” | 15 | 108 | - | 108 | 184 | 4 | - |
| 3/4” | 20 | 117 | - | 117 | 185 | 5 | - |
| 1” | 25 | 127 | 140 | 127 | 236 | 7 | - |
| 1.1/2” | 40 | 165 | 178 | 165 | 282 | 18 | - |
| 2” | 50 | 203 | 216 | 203 | 338 | 22 | - |
| 2.1/2” | 65 | 216 | 229 | 216 | 373 | 29 | 19 |
| 3” | 80 | 241 | 254 | 241 | 396 | 38 | 28 |
| 4” | 100 | 292 | 305 | 292 | 476 | 60 | 49 |
| 5” | 125 | 356 | 369 | 356 | 497 | 80 | 70 |
| 6” | 150 | 406 | 419 | 406 | 524 | 110 | 89 |
| 8” | 200 | 495 | 508 | 495 | 588 | 163 | 140 |
| 10” | 250 | 622 | 635 | 622 | 738 | 255 | 220 |
| 12” | 300 | 698 | 711 | 698 | 862 | 400 | 365 |
| 14” | 350 | 787 | 80 | 787 | 950 | 555 | 495 |
| 16” | 400 | 914 | 927 | 914 | 994 | 725 | 657 |
| 18” | 450 | 978 | 991 | 978 | 1105 | 989 | 866 |
| 20” | 500 | 978 | 991 | 978 | 1255 | 1335 | 1210 |
| 24” | 600 | 1295 | 1308 | 1295 | 1405 | 1625 | 1500 |
| CLASS 300 | |||||||
|---|---|---|---|---|---|---|---|
| Size | A (MM) | J | Weight (kg) | ||||
| NPS | DN | RF | RTJ | BW | MM | FE | BW |
| ½” | 15 | 152 | 163 | 152 | 184 | 8 | - |
| 3/4” | 20 | 178 | 191 | 178 | 186 | 9 | - |
| 1” | 25 | 203 | 216 | 203 | 237 | 15 | - |
| 1.1/2” | 40 | 229 | 242 | 229 | 282 | 20 | 17 |
| 2” | 50 | 267 | 283 | 267 | 354 | 26 | 22 |
| 2.1/2” | 65 | 292 | 3089 | 292 | 389 | 39 | 30 |
| 3” | 80 | 318 | 334 | 318 | 421 | 52 | 36 |
| 4” | 100 | 356 | 372 | 356 | 495 | 79 | 55 |
| 5” | 125 | 400 | 416 | 400 | 530 | 105 | 92 |
| 6” | 150 | 444 | 460 | 444 | 675 | 165 | 140 |
| 8” | 200 | 559 | 575 | 559 | 912 | 280 | 235 |
| 10” | 250 | 622 | 638 | 622 | 949 | 380 | 320 |
| CLASS 600 | |||||||
|---|---|---|---|---|---|---|---|
| Size | A (MM) | J | Weight (kg) | ||||
| NPS | DN | RF | RTJ | BW | MM | FE | BW |
| ½” | 15 | 165 | 163 | 165 | 184 | 11 | - |
| 3/4” | 20 | 190 | 190 | 190 | 190 | 13 | - |
| 1” | 25 | 216 | 216 | 216 | 236 | 18 | - |
| 1.1/2” | 40 | 241 | 241 | 241 | 285 | 25 | - |
| 2” | 50 | 292 | 295 | 292 | 397 | 39 | 27 |
| 2.1/2” | 65 | 330 | 333 | 330 | 445 | 53 | 43 |
| 3” | 80 | 356 | 359 | 356 | 495 | 79 | 62 |
| 4” | 100 | 432 | 435 | 432 | 600 | 122 | 90 |
| 5” | 125 | 508 | 511 | 508 | 680 | 195 | 165 |
| 6” | 150 | 559 | 562 | 559 | 790 | 287 | 225 |
| 8” | 200 | 660 | 663 | 660 | 1015 | 547 | 447 |
| MATERIAL OF CONSTRUCTION | ||||
|---|---|---|---|---|
| PART NAME | CARBON STEEL | ALLOY STEEL | STAINLESS STEEL | |
| Body | A 216 WCB / WCC | A 352 LCB /LCC | A 217 WC6/WC9/C5/C12 | A 351 CF8/CF8M/CF3/CF3M/CF8C |
| Bonnet | A 216 WCB / WCC | A 352 LCB /LCC | A 217 WC6/WC9/C5/C12 | A 351 CF8/CF8M/CF3/CF3M/CF8C |
| Seat Ring | A 216 WCB / WCC+13% Cr. | A 351 C F8 | A 217 WC6/WC9/C5/C12 /A 217 CA 15 | A 351 CF8/CF8M/CF3/CF3M/CF8C |
| Wedge | A 216 WCB+13% Cr. Facing | A 351 C F8 | A 217 WC6/WC9/C5/C12+13% Cr. | A 351 CF8/CF8M/CF3/CF3M/CF8C |
| Stem | A 276 TP 410 | A 276 TP 304 | A 276 TP 410 | A 276 TP 304/316/304L/316L/321 |
| Gland Flange | A 105 / CS/A216 WCB | A 105 / CS | A 105/CS | A1053/CS3/A351 CF8/CF8M/CF3 |
| Back Seat | A 276 TP 410 | A 276 TP 304 | A 276 TP 410 | A351 CF8/CF8M/CF3/CF3M/CF8C |
| Gland | A 276 TP 410 | A 276 TP 304 | A 276 TP 410 | A276 TP 304 / 316 / 304L /316 L /321 |
| Joint Sutd | A 193 B7 | A 320 L7 | A 193 B16 | A 193 B7 / B8 |
| Joint Stud Nuts | A 194 2H | A 194 7 | A194 7 | A 194 2H /8 |
| Gland Stud | A 193 B7 | A 320 L7 | A 193 B16 | A 193 B7 / B8 |
| Gland Stud nuts | A 194 2H | A 194 7 | A194 7 | A 194 2H /8 |
| Gasket | Spiral Wounded SS 316 /316L / 304L / 304 / 321 with Grafoil filler | |||
| Stem Packing | Braided Graphite and Die Formed Graphite ring | |||
| Yoke Sleeve | A439 Gr.D2 | |||
| Hand wheel | Below 2”= Malleable Iorn & Above 2” Ductlie Iron | |||
