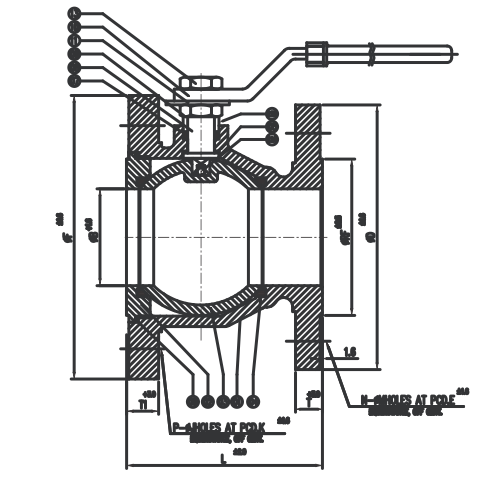

| STANDARDS | |
|---|---|
| Design Std. | BS 5351 |
| Face to Face | As per Mfg. Std. |
| End Connection | As per B 16.5 Flanged End |
| Testing Standard | BS 6755 Part : 11 / API 598 |
| MATERIAL OF CONSTRUCTION | ||
|---|---|---|
| P. NO | PART'S NAME | MATERIAL |
| 1 | Body | As Cast |
| 2 | End Piece | As Cast |
| 3 | Ball | As Cast |
| 4 | Seat Ring | PTFE |
| 5 | Stem Ring | PTFE |
| 6 | Body Gasket | PTFE |
| 7 | Gland Packing | PTFE |
| 8 | Stem | SS304 / SS316 |
| 9 | Gland Nut | SS304 / SS316 |
| 10 | Handle | S.S. / C.S. |
| 11 | Lock Plate | As Per Drawing |
| 12 A | Antistatic Spring (Ball) | S.S. |
| 12 B | Antistatic Spring (Body) | S.S. |
| 13 | Handle Nut | S.S. |
| DIMENSIONS FOR FLUSH BOTTOM BALL VALVE | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CLASS | 150# | ||||||||||
| SIZE | L | ØB | ØRF | ØD | ØF | T | T1 | E-PCD | N x ØM | K-PCD | P x ØJ |
| 50mm x 40mm | 104 | 38 | 73 | 127 | 152 | 14.22 | 15.75 | 98.55 | 4 x 16 | 120.5 | 4 x 19 |
| 65mm x 50mm | 127 | 50 | 92.1 | 152 | 178 | 15.75 | 17.5 | 120.7 | 4 x 19 | 139.7 | 4 x 19 |
| 80mm x 50mm | 112 | 50 | 92.1 | 152 | 191 | 15.75 | 19.05 | 120.7 | 4 x 19 | 152.4 | 4 x 19 |
| 80mm x 65mm | 131.5 | 65 | 105 | 178 | 191 | 17.5 | 19.05 | 139.7 | 4 x 19 | 152.4 | 4 x 19 |
| 100mm x 80mm | 170 | 76 | 127 | 191 | 230 | 19.05 | 23.8 | 152.4 | 4 x 19 | 190.5 | 8 x 19 |
