Duplex basket filter with 3-way ball valve
1. In-Out Connection : Class 150 flanged ends RF as per ASME B16.5
2. Body : Fabricated Construction as per material
3. Operating temp. : 35 C
4. Operating Pressure : 5.0 kg/cm
5. Hydro. Test Pressure : 10.0 kg/cm

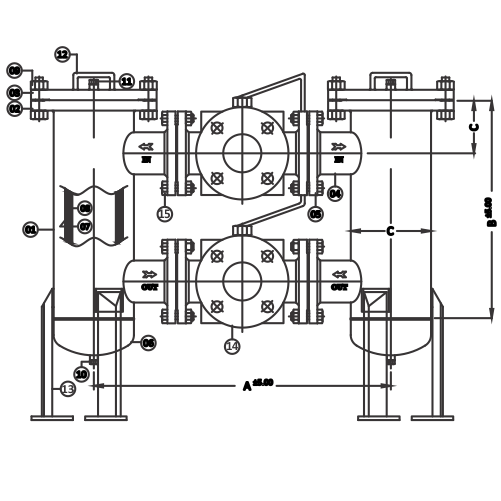

| MATERIAL OF CONSTRUCTION | |||
|---|---|---|---|
| SR. NO. | Item Description | Carbon Stee | Stainless Steel |
| 1 | Shell | IS 1239/IS 3589/SA 106 | SS 304, SS 316 |
| 2 | Shell Flange | IS 2062/SA 105 | SS 304, SS 316 |
| 3 | Cover Flange | IS 2062/SA 105 | SS 304, SS 316 |
| 4 | In-Out Nozzle | IS 1239/SA 106 | SS 304, SS 316 |
| 5 | Nozzle Flange | IS 2062/SA 105 | SS 304, SS 316 |
| 6 | Dishend | IS 2062/SA 234 Gr. WPB | SS 304, SS 316 |
| 7 | P.Sheet | SS 304, SS 316 (Ø6mm Hole) | |
| 8 | Wire Mesh | SS 304, SS 316 (40 Mesh) | |
| 9 | Stud & Nut | IS 1367/ASTM A 193 Gr. B7/2H | SS 304/ASTM A 193 Gr. B7/2H |
| 10 | Drain Plug | M.S. / SA 105 | SS 304, SS 316 |
| 11 | Vent Plug | M.S. / SA 105 | SS 304, SS 316 |
| 12 | Handle | M.S. | SS 304 |
| 13 | Leg Support | M.S. | SS 304 |
| 14 | 3-Way Ball Valve (L-port) | SA 216 Gr. WCB (SS 304 Ball) | SA 351 Gr. CF8/CF8M (SS 304, SS 316 Ball) |
| 15 | Stud & Nut | IS 1367/ASTM A 193 Gr. B7/2H | SS 304 / ASTM A 193 Gr. B7/2H |
| DIMENSIONS DUPLEX BASKET STRAINER | |||||||
|---|---|---|---|---|---|---|---|
| Inch | MM | 'A" Face to Face | 'B" Top to Bottom Line | 'C" Top to Nozzle Line | 'ØD' Shell Dia. | 'E' Screen Removal | Basket Area (CM ) |
| 1 | 25 | 490.0 | 360.0 | 120.0 | 4" | 270.0 | 588.0 |
| 1½" | 40 | 560.0 | 480.0 | 135.0 | 4" | 320.0 | 915.0 |
| 2" | 50 | 590.0 | 500.0 | 150.0 | 5" | 320.0 | 950.0 |
| 3" | 80 | 710.0 | 605.0 | 150.0 | 6" | 460.0 | 1467.0 |
