3 WAY BALL VALVE

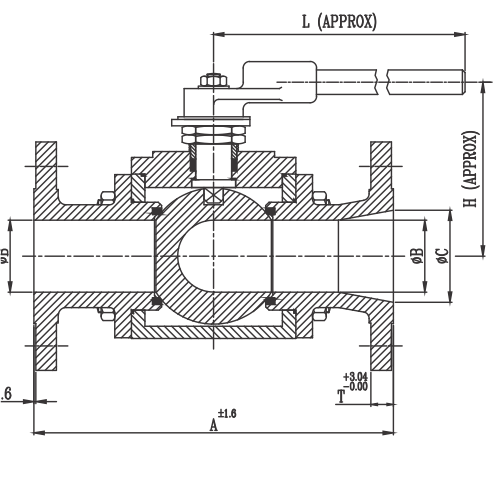

DIMENSIONS FOR 3 WAY BALL VALVE
Size Rating A ØB ØC ØD ØE T PCD Holes H L
25mm 150# 165 19 32 108 50.8 11.5 79.5 4-Ø16 95 250
300# 190 19 32 124 50.8 11.5 89.0 4-Ø19 95 250
40mm 150# 216 32 38 127 73.0 14.3 98.5 4-Ø16 105 280
300# 235 32 38 156 73.0 20.6 114.5 4-Ø22 105 280
50mm 150# 279 38 50 152 92.1 15.9 120.7 4-Ø16 135 350
300# 279 38 50 165 92.1 22 127 8-Ø19 140 350
65mm 150# 306 50 65 178 104.8 17.5 140 4-Ø19 155 400
300# 381 50 65 191 104.8 25.5 149 8-Ø22 160 400
80mm 150# 356 65 76 191 127.0 19.5 152.5 4-Ø19 160 450
300# 450 65 76 210 127.0 28.6 168.5 8-Ø22 170 450
100mm 150# 435 76 102 229 157.2 23.8 190.5 8-Ø19 180 475
300# 560 76 102 254 157.2 31.7 200 8-Ø22 215 500
150mm 150# 525 102 152 279 185.7 25.4 241 8-Ø22 235 500
300# - - - - - - - - - -
